Dust Collector Valves

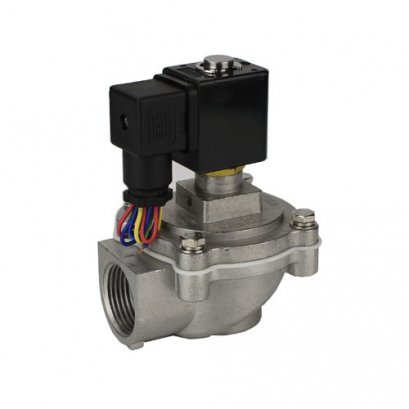

Right angle,economic type,3/4" and 1" G thread pneumatic pulse valve with fast opening and closing action, easy to install; Dust collectioin pulse valve for compressed air in the dust clean blowing system for pulse bag filters; Model: RMF-Z-20J

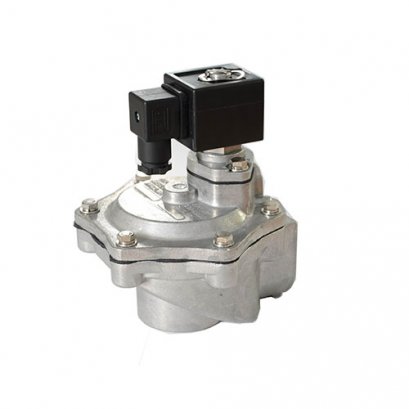

Right angle,Hexagon shape,1-1/2" Solenoid Pulse Valve with Aluminum body with fast open and close for effective cleaning; dust collection valve for compressed air in the dust clean blowing system for pulse bag filters; Model: RMF-Z-40S

Hexagon shape,2-1/2 Chinese professional pulse Valve manufacture; Dust collecting pulse valve for compressed air in the dust clean blowing system for pulse bag filters; pneumatic electromagnetic solenoid pulse valve with high speed operation enables dislodging of dust from filter bags; Model: RMF-Z-62S-A

Right angle,Hexagon shape,2" Pulse Valves For baghouse filter; pulse dust collecting valve with high speed operation enables dislodging of dust from filter bags; Pulse valve for ventilation systems Model: RMF-Z-50S-A

Air control,right angle2-1/2" G2” air controlled pulse valve with big flow,fast open and close. Pulse Jet Pneumatic Diaphragm Valve is easy to operate right angle pulse jet diaphragm valve is used for controlling the compressed air of dust remover filter system; Model: RMF-ZQ-62S

Quick mount,76orifice,DN90 port NPT3” electromagnetic pulse valve for efficient operation of the dust collector cleaning system; Dust collect solenoid valve with High flow factor for effective cleaning; Solenoid Pulse Jet Diaphram Valve with Lower air consumption/ Pulse; Chinese dust Collecting Valve supplier Model: RMF-Y-76S

Quick mount,DN50 port NBR diaphragm pulse valve is suitable for air bag and intallation of the wind spray connection. Submerged electromagnet pulse valve for efficient operation of the dust collector cleaning system; Desgined as ventilation systems spare parts Model: RMF-Y-40

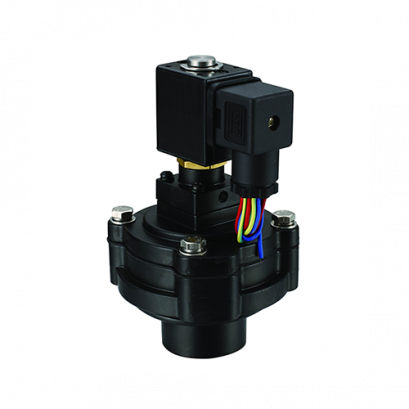

Quick mount,DN42 port Pilot operated solenoid pulse valve with fast open and close for effective cleaning; 24V Submerged Diaphragm Pulse Valve with NBR seal and Viton seal for option; Surface oxided solenoid pulse valve with good surface protection Model: RMF-Y-25

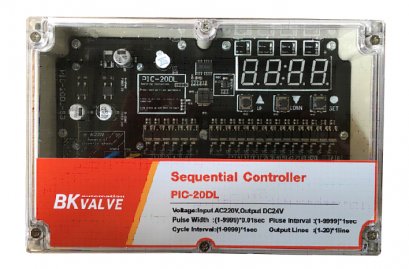

Sequential controller is main control part of bag filter system. It control the on/off of pules solenoid valves sequentially, So circularly the air runs in the bag and shakes off the dust which adsorbs on bag surface, make the bag keep clean and sufficient air permeability
